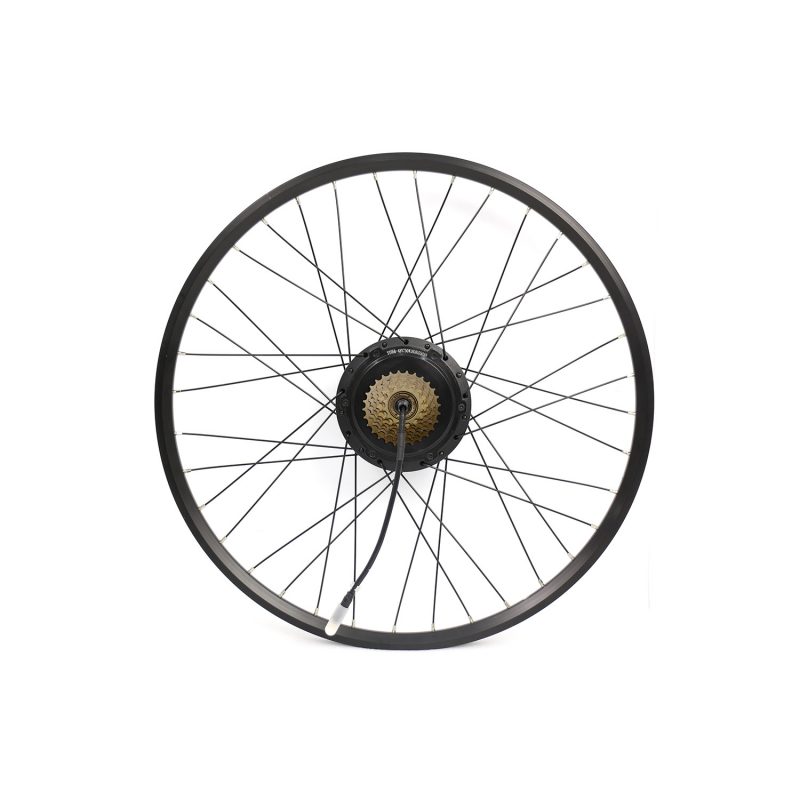

Unleash Superior Power: The HOTEBIKE 48V 750W Rear Wheel Set
Engineered for performance, the HOTEBIKE 48V 750W rear wheel set delivers high-torque electric assistance directly to your 27.5-inch mountain or city e-bike. Whether you are upgrading your existing ride or building a custom conversion, this complete rear wheel assembly – including motor, rim, spokes, and mounting screws – offers a seamless, bolt-on solution for instant power and reliability. Experience faster commutes, steeper climbs, and longer adventures with a wheel built to last.
Precision Crafted for Your Ride
Every HOTEBIKE rear wheel is the result of rigorous engineering and quality control. The 750W brushless hub motor is paired with a sturdy double-wall rim and stainless steel spokes, ensuring balanced weight distribution and durability under load. Designed specifically for 27.5-inch (650B) frames with standard rear dropout spacing (135mm or 142mm), this wheel set integrates seamlessly with most HOTEBIKE models and many third-party e-bike systems. The wiring harness and connectors are pre-installed, simplifying installation and reducing setup time.
Key Features That Drive Performance
- High-Efficiency 750W Hub Motor: The brushless, gearless motor delivers 48V of consistent power, offering a top speed of up to 28 mph (45 km/h) and peak torque exceeding 80 Nm for effortless hill climbing and acceleration.
- Robust 27.5-Inch Rim & Spokes: The 32-hole double-wall alloy rim is paired with 13-gauge stainless steel spokes and brass nipples, providing excellent strength-to-weight ratio and resistance to bending.
- Plug-and-Play Compatibility: Includes a 9-pin waterproof connector, disc brake rotor (160mm or 180mm) and freewheel (6-speed or 7-speed) – ready to connect to your existing controller and battery.
- Durable Sealed Bearings: High-quality cartridge bearings protect the motor from dust, water, and debris, ensuring smooth rotation and long service life in all weather conditions.
- Complete Assembly Kit: Comes with the motor, pre-laced rim, stainless steel spokes, nipples, axle nuts, washers, and mounting screws – everything you need for a direct replacement.
- Quiet Operation: The gearless design minimizes noise, making your ride stealthy and enjoyable even at high speeds.
Technical Specifications
| Specification | Detail |
|---|---|
| Motor Type | Brushless DC Hub Motor (Gearless) |
| Voltage | 48V |
| Rated Power | 750W (Peak 1200W) |
| Wheel Size | 27.5 inches (650B) |
| Rim Material | Double-Wall Alloy (6061-T6) |
| Spoke Count | 32 |
| Spoke Material | Stainless Steel (13 Gauge) |
| Axle Type | Threaded 12mm x 135mm (142mm optional) |
| Freewheel | 6-Speed (optional 7-speed) |
| Brake Mount | Disc Brake (160mm/180mm, 6-bolt) |
| Connector | 9-Pin Waterproof (Higo-compatible) |
| Weight | Approx. 8.5 kg (18.7 lbs) |
| Max Speed | ~28 mph (45 km/h, depending on controller settings) |
Comparison: Why This Wheel Outperforms Typical Alternatives
| Feature | HOTEBIKE 750W Rear Wheel | Typical 500W Front Wheel | Fat Tire Wheel (26×4) |
|---|---|---|---|
| Power Output | 750W (peak 1200W) | 500W (peak 750W) | 500–750W |
| Torque | 80+ Nm | 40–50 Nm | 60–70 Nm |
| Weight Distribution | Rear wheel = better traction & stability | Front wheel = lighter steering | Heavier, more rolling resistance |
| Terrain Adaptability | Ideal for hills, gravel, and paved roads | Best for flat urban commutes | Sand, snow, loose terrain |
| Installation Complexity | Direct bolt-on for 27.5 frames | May require different wiring length | Needs fat-bike frame & fork |
| Compatibility | HOTEBIKE & many 27.5 e-bikes | Universal front wheel | Limited to fat-tire bikes |
| Price | Excellent value for power | Lower initial cost | Higher cost for specialized use |
Performance & Riding Experience
With 750W of continuous power and peak bursts exceeding 1200W, the HOTEBIKE rear wheel transforms your ride. Acceleration from a standstill is brisk, allowing you to merge into traffic with confidence. On steep climbs (up to 15% grade), the motor maintains steady speed without overheating, thanks to efficient heat dissipation through the aluminum rim and hub. The 48V system ensures high energy efficiency, giving you a range of 20–40 miles on a single charge depending on terrain and battery capacity. The 27.5-inch wheel diameter strikes the perfect balance between agility and rolling stability – nimble enough for city traffic yet capable enough for light off-road trails. The lack of gears means minimal maintenance; no worn-out bushings or noisy planetary gears to replace. Riders consistently report a smooth, silent ride that feels like a natural extension of their pedaling effort.
Ideal Use Cases
This rear wheel set is perfect for:
– Daily Commuters: Slash your travel time and arrive without sweat. The 750W motor easily maintains 20+ mph on flat roads.
– Weekend Mountain Bikers: Conquer hills and technical climbs that would normally require a mid-drive motor. The rear hub provides direct, predictable power to the wheel.
– E-Bike Conversion Enthusiasts: Upgrade your older bike or build a new one from scratch. The pre-laced wheel saves hours of labor.
– Riders Seeking Reliability: The sealed bearings and robust construction withstand thousands of miles of abuse, even in rain or dust.
– Commercial Fleets: Ideal for rental e-bikes or delivery bikes that need a durable, low-maintenance drive system.
Why Choose HOTEBIKE? Quality, Value & Support
HOTEBIKE has been a trusted name in the e-bike industry for over a decade, known for delivering high-performance components at competitive prices. Every rear wheel is factory-tested for runout, spoke tension, and electrical continuity before shipping. We stand behind our products with a 12-month warranty against manufacturing defects and dedicated customer service from our North American warehouse. Unlike generic no-name wheels, our motors are engineered with proprietary winding patterns and high-grade magnets to maximize efficiency and torque. When you choose HOTEBIKE, you’re not just buying a wheel – you’re investing in a ride that will keep you moving for years. Plus, our online resources include detailed installation guides and video tutorials to help you get on the road quickly.
Safety & Warranty
Your safety is our priority. The HOTEBIKE rear wheel meets all applicable e-bike safety standards, including CE and RoHS certifications. The motor is encased in a robust aluminum housing that dissipates heat and protects against short circuits. The included disc brake mount is compatible with mechanical or hydraulic calipers for reliable stopping power. Always verify that your frame’s dropout spacing and brake type match this wheel – we recommend professional installation if you are unsure. The 12-month warranty covers the motor and rim against manufacturing defects; wear items like spokes and freewheel are covered for 90 days. For Canadian customers, please contact our customer service team before ordering to ensure compatibility with local regulations and shipping options.
Frequently Asked Questions
Q: Is this wheel compatible with my HOTEBIKE mountain e-bike?
A: Yes, this wheel is designed specifically for HOTEBIKE 27.5-inch models with 48V 750W systems. It directly replaces the original rear wheel. Check your rear dropout width (135mm or 142mm) and brake type (disc only).
Q: What controller and battery do I need?
A: This wheel requires a 48V controller rated for 750W (or higher) and a 48V battery. The 9-pin connector is compatible with most common e-bike controllers (e.g., KT, Lishui). We recommend using HOTEBIKE’s original controller and battery for optimal performance.
Q: Can I use this wheel on a fat tire bike?
A: No, this wheel is not for fat tire bikes. It is designed for standard 27.5-inch tires (2.0–2.4 inch width). For fat tire bikes, please see our 26-inch fat tire wheel set.
Q: Does it come with a freewheel and brake disc?
A: Yes, the wheel includes a 6-speed freewheel and a 160mm disc brake rotor. A 180mm rotor is available separately. The mounting screws are included.
Ready to Ride? Upgrade Your E-Bike Today
Don’t settle for a sluggish ride or a difficult installation. The HOTEBIKE 48V 750W rear wheel set gives you the power, reliability, and ease of use you need to transform your e-bike experience. Whether you’re climbing hills, cruising to work, or exploring new trails, this wheel delivers the performance you expect from a premium brand – at a price that makes sense. Order now and get free shipping within the continental U.S. (Canadian customers, please contact us first). Your adventure awaits.
